Holley EFI plug and play Kit
Regular price $5,795.00
Unit price per

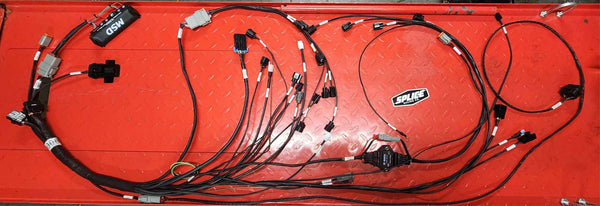

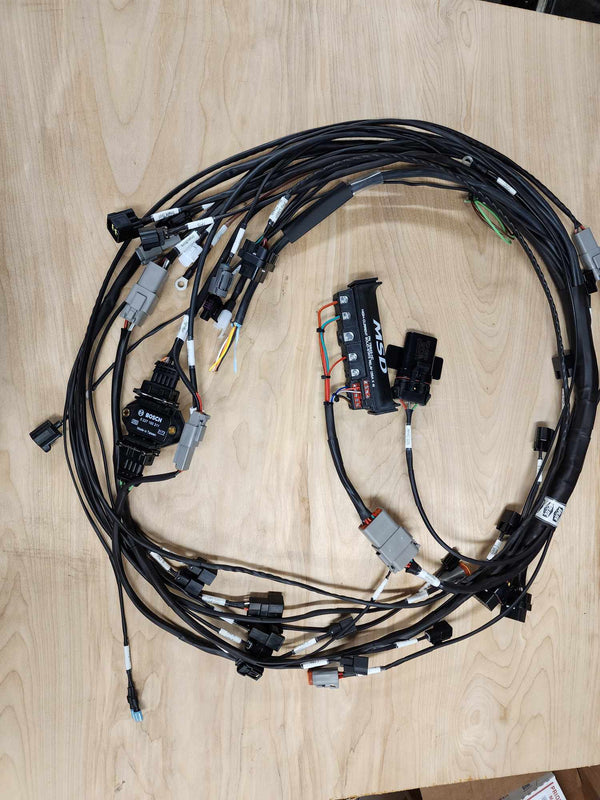

Harness plug and play the only thing that needs wiring to fire bike is the battery terminals to power harness!!!!

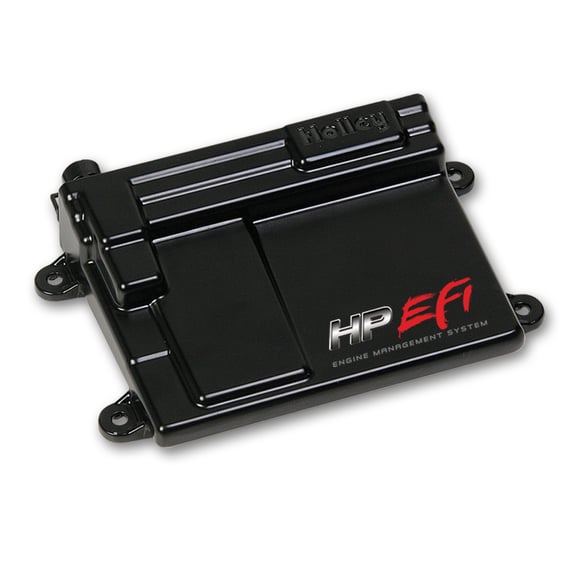

This is the full deal with plug and play harness (not piggy back to oem harness) , includes msd solid state relay and 1 stage nitrous solid state relay , HP ecu , Holley 6.86 pro dash , Bosch coil driver , Holley ntk 02 sensor , Holley oil and fuel pressure sensors.

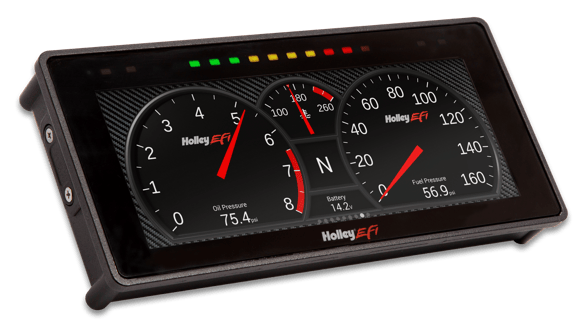

Also by using the holley 6.86 pro dash you can have inputs and outputs and toggles in dash with total customization in the dash!
Harness will have wiring for clutch switch for 2 step that can also be used for a button when using a mallet magnet or full sliders as well as delay box wiring harness with dummy connector . Harness has wiring for 1 fan , 2 12v power sources for lights or air compressor ( those will need to wired per user). MSD solid state relay as a fuse panel to control power to harness , fans etc. Harness has a independent nos solid state relay for 1 stage of nitrous as well.
There is also 1 open spot on the msd solid state relay for user available.
The harness is wired to plug directly into oem controls and function as well as wired to plug into 6.86 pro dash out of the box.

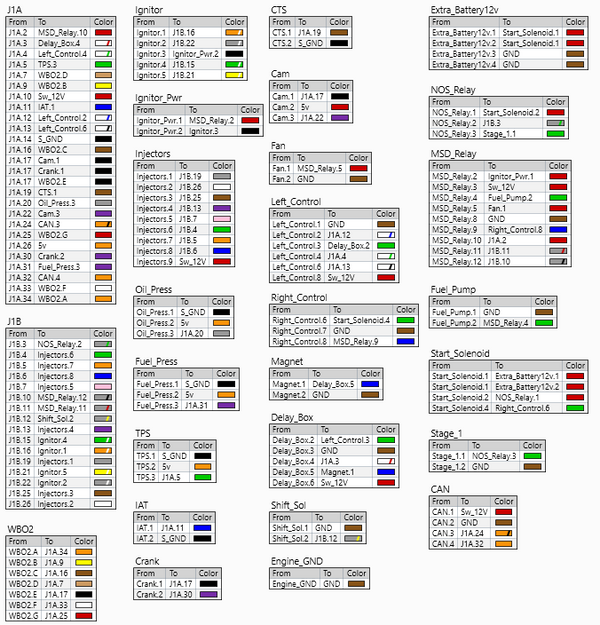

Also there will also be a nice wiring diagram for you to map out wiring if needed.
Also will need injector info when ordering. Please contact us or Dustin directly for questions!
